TOYO-INTL SWIVEL HOOK US MODEL
SWIVEL HOOK US MODEL
The details information as follows
1，Material is high grade alloy steel (quenched and tempered)
2，Marked with Brand,WLL,Batch No.and Size
3，Ultimate load is 7 times of capacity
5，Lock Latch provides Automatic Licking when Hook is loaded.
|
Working Load Limit |

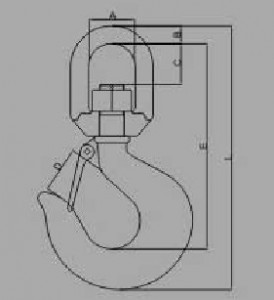

DIMENSIONS(in) |
Weight |
||||||||||
|
(metric) |
(lbs) |
|||||||||||
|
322C |
322A |
A |
B |
C |
D |
E |
L |
R |
S |
T |
O |
|
|
3/4 |
1 |
2 |
15/16 |
1 1/4 |
2 7/8 |
15/16 |
5 9/16 |
4 15/32 |
3/8 |
13/16 |
7/8 |
0.75 |
|
1 |
1 1/2 |
2 1/2 |
1 5/16 |
1 1/2 |
3 3/16 |
1 1/32 |
6 5/8 |
5 9/32 |
1/2 |
13/16 |
31/32 |
1.25 |
|
1 1/2 |
2 |
3 |
1 5/8 |
1 3/4 |
3 5/8 |
1 1/16 |
7 5/8 |
6 1/64 |
5/8 |
27/32 |
1 |
2.25 |
|
2 |
3 |
3 |
1 9/16 |
1 3/4 |
4 3/32 |
1 7/32 |
8 1/8 |
6 3/8 |
5/8′ |
1 3/16 |
1 1/8 |
2.57 |
|
3 |
41/2 |
3 1/2 |
1 3/4 |
2 |
4 15/16 |
1 1/2 |
9 19/32 |
7 13/32 |
3/4 |
1 3/8 |
1 11/32 |
4.75 |
|
5 |
7 |
4 1/2 |
2 5/16 |
2 1/2 |
6 1/2 |
1 7/8 |
12 13/32 |
9 19/32 |
1 |
1 25/32 |
1 11/16 |
10.29 |
|
2/71 |
11 |
5 |
2 3/8 |
2 3/4 |
7 9/16 |
2 1/4 |
11 1/8 |
11 1/8 |
1 1/8 |
2 1/8 |
2 1/16 |
16.25 |
