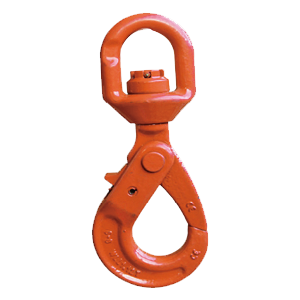

TOYO-INTL SWIVEL HOOK HSA TYPE

Swivel Hook

This Swivel hooks have all the features of an TOYO-INTL forge Safety Hook,

but with the added bonus of its swivel function. The swivel assists in the removal

of sling leg twist, making it particularly suitable for high-rise lifting.

Technical Features

Material is high grade alloy steel (quenched and tempered).

Rated for both chain grade 80 and wire rope for lifting.

application.

Positive Lock Latch is Self-Locking when hook is loaded.

Marked with TOYO-INTL, traceability, WLL, Batch No.and Size.

100% 2.5 times of capacity proof load tested.

Ultimate load is 4 times of capacity.

Fatigue rated is 1.5 times the WLLat 20,000 cycles.

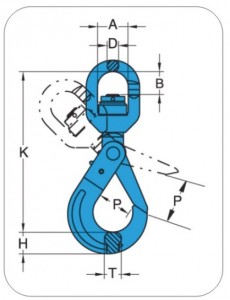

HSA    BEARING-SWIVEL-HOOK-1-230x300

Item No . Workingload limit For grade 80chain Dimensions(mm) N.W.
Tonnes* mm K P B A D T H kg
HS A 006 1.12 6 149 29 22 31 12 15 21 0.6
HS A 007 2.0 7.8 186 34 29 36 14 20 25 1.1
HS A 010 3.15 10 220 44 34 40 16 26 31 2.0
HS A 013 5.3 13 267 52 43 46 22 24 40 4.0
HS A 016 8.0 16 328 60 52 60 24 41 52 6.8
HS A 018 12.5 48,20 388 90 82 75 26 48 62 11.6
HS A 022 15.0 22 457 80 95 97 33 49 63 16.0
