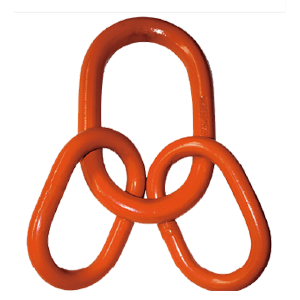

TOYO-INTL MASTER LINK ASSEMBLY MLA MODEL

MASTER LINK ASSEMBLY MLA

High grade Alloy Steel (Quenched and Tempered) material.

Design Factor of 4 to 1 for chain and 5 to 1 for wire rope.

Individually Proof Tested to 2.5 times the Working Load Limit (4:1),

unless otherwise noted, with certification.

Each link has a Product Identification Code (PIC)for material

tradceability, along with the size and the manfacture mark.

Larger inside width and length for use with thimble.

Fatigue rated at 1.5 times the WLL with 20,000 cyclic test.

MLA     MASTER-LINK-DRAWING

Productcode Size (D)mm Lmm LImm Bmm dmm bmm Imm WLL4:1 ton weightkg
MLA-8-16 16 214 120 70 13 60 115 4.1 1.4
MLA-8-20 20 267 170 90 16 70 120 6.5 2.5
MLA-8-22 22 310 170 90 20 90 170 8.2 4.2
MLA-8-25 25 329 190 100 20 90 170 10.7 4.5
MLA-8-28 28 407 270 140 22 90 170 12.9 6.4
MLA-8-32 32 424 270 140 25 100 190 17.1 9.9
MLA-8-38 38 493 270 140 32 140 270 28.1 18.2
MLA-8-45 45 540 320 170 38 140 270 39.3 27.7
