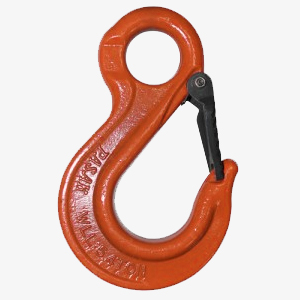

TOYO-INTL Eye Sling Hook

Eye Sling Hook

The TOYO-INTL forged Sling Hook is a versatile, general purpose hook suitable

for most slinging applications and has the added advantage of safety latch kits, readily

available, for converting it into an Ableforge safety hook.

Technical Specialities

Material is forged alloy steel (quenched and tempered ).

Large throat opening.

Anti – fouling due to carefully designed contours.

Used with alloy chain grade 80 and wire rope for lifting application.

Embossed with TOYO-INTL traceability, WLL,Batch Number and Size

100% 2.5 times of capacity proof load tested.

Ultimate load is 4 times of capacity.

Fatigue rated is 1.5 times the WLLat 20,000 cycles.

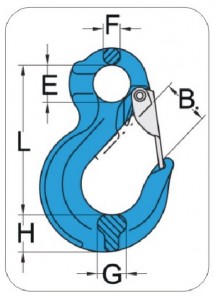

Productcode	Sizemm	Lmm	Bmm	Emm	Fmm	Gmm	Hmm	WLL4:1 ton	weightkg
HES 006	6	80	24	20	9	16.5	19	1.2	0.3
HES 007	7	98	30	25	11	19.5	24	2.0	0.4
HES 010	10	120	34	38	15	20	32	3.2	0.8
HES 013	13	150	39	43	19	31	42	5.4	1.7
HES 016	16	185	46	50	23	36	46	8.2	3.2
HES 018	18	217.5	40	62	24	52	58	12.8	5.1
HES 022	22	241	71	62	32	54	75.5	15.0	8.0
HES 026	26	355	102	88	37	60	88	20.6	13.4
