TOYO-INTL CLEVIS SLING HOOK HCS TYPE
CLEVIS SLING HOOK HCS TYPE

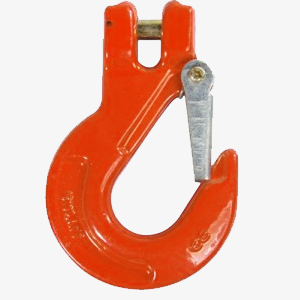

Clevis Sling Hook
The TOYO-INTL forged Sling Hook is a versatile, general purpose hook suitable
for most slinging applications and has the added advantage of safety latch kits, readily
available, for converting it into an Ableforge safety hook.
Technical Specialities
Material is forged alloy steel (quenched and tempered ).
Large throat opening.
Anti – fouling due to carefully designed contours.
Used with alloy chain grade 80 and wire rope for lifting application.
Embossed with TOYO-INTL, traceability, WLL,Batch Number and Size
100% 2.5 times of capacity proof load tested.
Ultimate load is 4 times of capacity.
Fatigue rated is 1.5 times the WLLat 20,000 cycles.

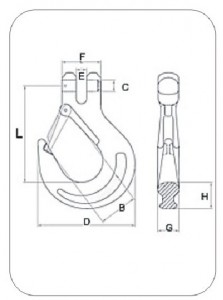

| Productcode | ChainSizemm | Lmm | Bmm | Cmm | Dmm | Emm | Fmm | Gmm | Hmm | WLL4:1 ton | weightkg |
| HCS 007 | 7 | 102 | 25 | 10.3 | 88.5 | 9.5 | 37 | 19 | 32.5 | 2.0 | 0.5 |
| HCS 010 | 10 | 111 | 31.5 | 13 | 111 | 13 | 49 | 25.5 | 35 | 3.2 | 1.0 |
| HCS 013 | 13 | 136 | 35 | 16.4 | 131 | 16.5 | 56.5 | 27.5 | 42 | 5.4 | 2.1 |
| HCS 016 | 16 | 160 | 49 | 21.3 | 162 | 21.5 | 70.5 | 37.5 | 53.5 | 8.2 | 3.6 |
| HCS 020 | 20 | 190 | 29 | 24.3 | 187 | 24 | 77 | 51 | 58 | 12.5 | 6.2 |
