TOYO-INTL Clevis Safety Hook

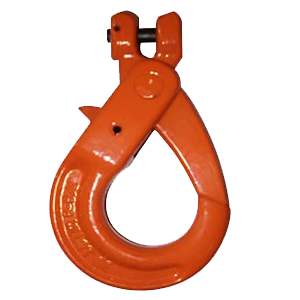

Clevis Safety Hook

The unique design of the TOYO Forged Safety Hook allows it to be easily

closed with one hand, or will close itself when the load is engaged.

Once under load, it will not disengage even if the loaf is temporarily set down.

When the load is released, the latch is simply opened by pressing the

release trigger, and stays open, making the hookup very easy.

Technical Features

Material is high grade alloy steel (quenched and tempered)

Used with alloy chain grade 80 for lifting application

Marked with Brand,WLL,Batch No.and Size

100% 4 times of capacity proof load tested

Ultimate load is 7 times of capacity

Fatigue rated is 1.5 times the WLLat 20,000 cycles

Lock Latch provides Automatic Licking when Hook is loaded.

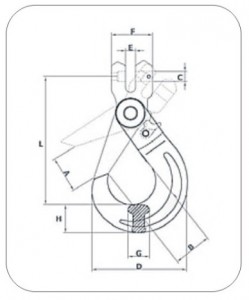

Clevis Safety HookCLEVIS-SAFETY-HOOK-DRAWING-249x300

Item No . Size mm Lmm Amm Bmm Cmm Dmm Emm Fmm Gmm Hmm WLL4:1 Ton Weightkg
HSC 006 6 95 31 26 7.8 79 8.5 32 16 22 1.2 0.45
HSC 007 7 117 39 36 9.2 89 9 37 20 24 2.0 0.85
HSC 010 10 140 52 44 13.2 107 12 47.5 26 30 3.2 1.45
HSC 013 13 76 65 52 16.3 139 15 60 32 40 5.4 2.90
HSC 016 16 210 75 63 20.2 166 18 73 40 51 8.2 5.60
HSC 018 18 232 83 76 24.3 186 25 81 45 56 12.5 6.50
HSC 022 22 265 88 80 28.2 204 25.5 98 52 65 15.0 16.00
