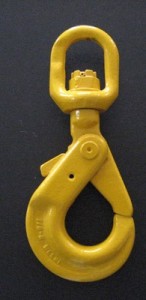

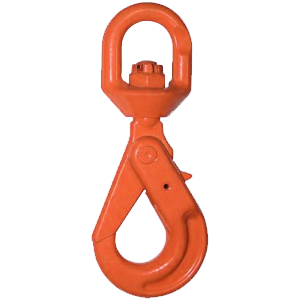

TOYO-INTL BEARING SWIVEL HOOK HSB TYPE
Bearing Swivel Hook
This Swivel hooks have all the features of an TOYO-INTL forged Safety Hook,
but with the added bonus of its swivel function.
The swivel assists in the removal of sling leg twist, making it particularly
suitable for high-rise lifting.
Technical Features
Material is high grade alloy steel (quenched and tempered).
Rated for both chain grade 80 and wire rope for lifting application.
Positive Lock Latch is Self-Locking when hook is loaded.
Marked with TOYO-INTL, traceability, WLL, Batch No.and Size.
100% 2.5 times of capacity proof load tested.
Ultimate load is 4 times of capacity.
Fatigue rated is 1.5 times the WLLat 20,000 cycles
Item No . | Workingload limit | For grade 80chain | Dimensions(mm) | N.W. | ||||||
Tonnes* | mm | K | P | B | A | D | T | H | kg | |
HSB 006 | 1.12 | 6 | 136 | 24 | 23 | 32 | 11 | 16 | 19 | 0.6 |
HSB 007 | 2.0 | 7.8 | 155 | 26 | 27 | 36 | 12 | 18 | 22 | 0.9 |
HSB 010 | 3.15 | 10 | 189 | 36 | 37 | 42 | 16 | 23 | 29 | 1.5 |
HSB 013 | 5.3 | 13 | 233 | 42 | 40 | 48 | 20 | 28 | 35 | 3.0 |
HSB 016 | 8.0 | 16 | 280 | 50 | 55 | 60 | 22 | 35 | 44 | 5.1 |
HSB 018 | 12.5 | 18,20 | 356 | 56 | 82 | 74 | 25 | 49 | 65 | 9.4 |
HSB 022 | 15.0 | 22 | 354 | 70 | 63 | 80 | 28 | 50 | 74 | 11.8 |
