TOYO-INTL ALLOY STEEL SAFETY HOOKS HSE TYPE

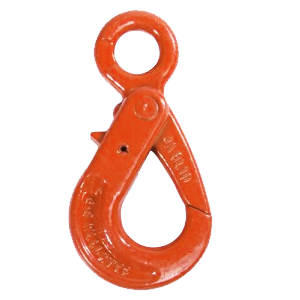

ALLOY STEEL SAFETY HOOKS HSE

The unique design of the TOYO-INTL forgeD Safety Hook allows it to be

easily closed with one hand, or will close itself when the load is engaged.

Once under load, it will not disengage even if the loaf is

temporarily set down. When the load is released, the latch is simply opened by

pressing the release trigger, and stays open, making the hookup very easy.

Technical Features

Material is high grade alloy steel (quenched and tempered).

Used with alloy chain grade 80 for lifting application.

Marked with Brand,WLL,Batch No.and Size

100% 4 times of capacity proof load tested.

Ultimate load is 7 times of capacity.

Fatigue rated is 1.5 times the WLLat 20,000 cycles.

Lock Latch provides Automatic Licking when Hook is loaded.

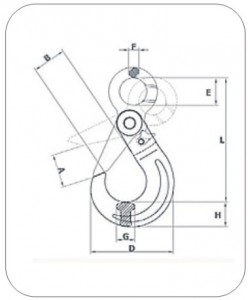

HSEEYE-SAFETY-HOOK-DRAWING-248x300

Item No . Size mm Lmm Amm Bmm Dmm Emm Fmm Gmm Hmm WLL4:1 Ton Weightkg
HSE 006 6 107 28 28 70 22 10.5 16 22 1.2 0.5
HSE 007 7 132 31 36 88 25 12 20 24 2.0 0.8
HSE 010 10 164 48 41 106 32 15 26 30 3.2 1.5
HSE 013 13 206 60 52 138 40.5 20 32 40 5.4 3.2
HSE 016 16 249 73 60 170 55 23 40 51 8.2 6.1
HSE 018 18 270 77 79 187 64 27 45 56 12.5 7.5
HSE 022 22 310 90 88 204 70 30 52 65 15.0 13.4
