TOYO-INTL KOREAN STYLE MALLEABLE TURNBUCKLE

TOYO-INTL KOREAN STYLE MALLEABLE TURNBUCKLE .



•
•

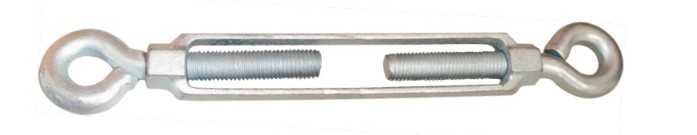

• MALLEABLE KOREA TYPE TURNBUCKLE

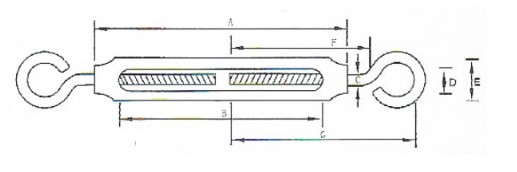

  SIZE	Dimmention							WEIGHT
  inch	A	B	C	D	E	F	G	(g)
  5/16	90	70	8	11	22	65	95	145
  3/8	160	130	9	17	30	85	130	345
  1/2	190	155	10	20	30	95	150	560
  1/2(L)	255	215	10	30	35	140	190	790
  5/8	250	200	15	25	45	130	190	1120
  5/8(L)	350	300	15	30	45	180	240	1540
  3/4	250	200	20	35	45	140	210	1670
  3/4(L)	300	245	20	40	55	170	240	2050
  7/8	330	260	22	31	62	170	240	2565
  1	350	280	25	36	66	180	250	3655
